Proton Therapy Facility Design

We are your partner from the Feasibility Analysis until Building Occupancy.


3D BIM Design

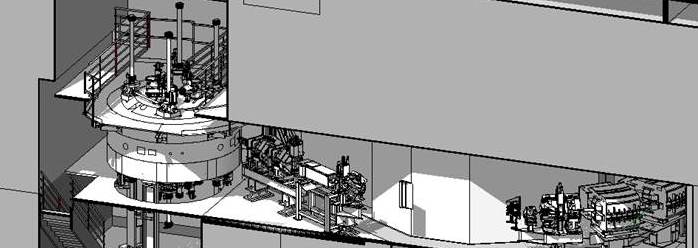

We take the Proton Therapy Vendor’s shielding proposal (or create our own) and convert it into a 3D BIM model of the Proton Bar. Starting with the concrete model we continue to add details and reach Schematic Design stage, followed by several iterations on Design Development stages, until we reach 100% Construction Drawing sets.

We provide you with proven ventilation concepts, electrical power distribution concepts and cable routing concepts.Your local architect and engineers will then create the respective desigs complying with local building code, and we will integrate their design into our BIM model in a radiation safe manner.

The radiation shielding report can be a part of the deliverable as part of our project, including wall penetrations such as access mazes, ventilation ducts, water & gas pipes, electrical conduits.

2D or 3D models from the Proton Therapy Vendor will be integrated. 3D renderings and animations will be generated for design review, clash detection or other purposes.

Our cost efficient and radiation safe designs are based on our know-how from more than 15 proton therapy centers worldwide.

Behind the Scenes on Proton Therapy Construction Jobs

Open Link

Radiation Shielding, PTCOG58, 2019


DOTmed HCBN: Opening a Proton Therapy Center

Open Link

Integrated Shield Design and Validation

We started as radiation experts and became BIM Designers.

Our shield designs will satisfy local radiation regulations, provide the shielding report that can then be used for the radiation permit application.

Project Management

Many stake holders will be involved in the design. It takes technical know-how and experience to bring all stake holders together, speak the language of Architects and Physicist and Owners as we do, find cost reductions in a cross functional team and reduce the design period. With more than 20 years of project management experience we are ready to take the role of coordinating this effort for your project.

Other Services

– Feasibility Assessment
– Radiological & Environmental Impact Assessment
– Workflow Support
– Mechanical, Electrical and Plumbing Interfaces

We Enable Beam Performance!
